At Microsoft Industry Solutions Engineering, we are big fans of integration tests. They are the best way to test that your system works as a whole, but sometimes, integration tests are overkill or too complex to set up that the return on investment is just not worth it. That’s the situation one of our teams has recently found themselves in.

The project in question was a proof of concept, a natural language search engine for a large manufacturing company. The data was complex, inconsistent, and spread across multiple downstream systems managed by different teams. These systems varied widely in engineering maturity. Some had integration test environments, while others did not. Since this was a proof of concept, the team decided not to invest time in setting up integration tests for every downstream system. However, they still needed a way to test the interactions between these systems effectively.

So what do you do then? You could write unit tests, but they only test the applications in isolation. That’s where contract testing comes in.

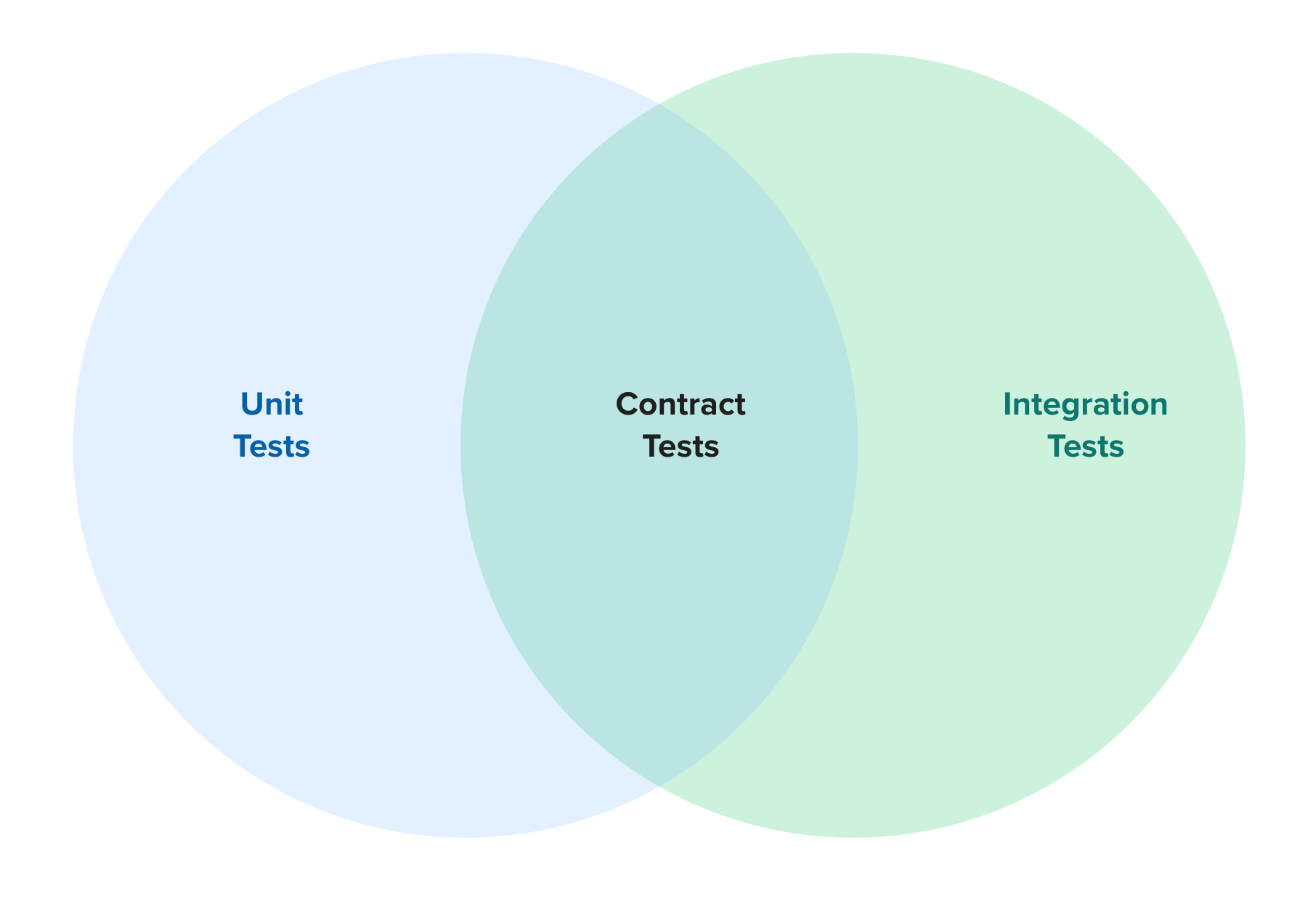

Looking at the table below, you can see that contract tests are a good middle ground between unit and integration tests. They are fast to run, easy to set up, and provide a good level of coverage.

In this post, we will explain what contract testing is, why it is useful, and how to use PACT to write contract tests for your applications.

What is contract testing?

Contract testing is a way to test the interactions between two applications. It allows you to define a contract between the two applications, which specifies how they should interact. This contract can then be used to test both systems in isolation, without the need for a full integration test.

With contract testing, you achieve the simplicity and speed of unit tests while significantly improving coverage, bringing it closer to the level of integration tests, but without the associated complexity or overhead.

What is PACT?

PACT is a contract testing tool that allows you to define a contract between two applications. It is a consumer-driven contract testing tool, which means that the consumer of the API defines the contract. The provider of the API then uses this contract to test that it meets the requirements of the consumer. This allows you to test the interactions between the two applications without the need for a full integration test.

PACT is available in multiple languages, including Java, JavaScript, Ruby, and Go. This means that you can use PACT to test applications written in different languages, which is especially useful in microservices architectures where different services may be written in different languages. However, we have found that the PACT libraries for each language do not have feature parity. For example the Java version of PACT is much more mature than the Python version. So, ensure you verify the level of support before committing to using PACT in a less-supported language. You can find the list of supported languages here.

PACT is not just limited to REST APIs. It also supports testing interactions with message brokers, such as Kafka.

How does PACT work?

PACT works by defining a contract between the consumer and provider of an API. The consumer defines the contract by writing a unit test that specifies the expected interactions with the API. This test is then used to generate a contract file, which is a JSON file that contains the details of the contract. The provider then uses this contract file to test that it meets the requirements of the consumer.

The contract file

You can see an example of a contract file below:

{
  "consumer": {
    "name": "OrderConsumer"
  },
  "provider": {
    "name": "OrderProvider"
  },
  "interactions": [
    {
      "description": "a request for a order",
      "providerStates": [
        {
          "name": "order with ID 88 exists"
        }
      ],
      "request": {
        "method": "GET",
        "path": "/order/88",
        "headers": {
          "Accept": "application/json"
        }
      },
      "response": {
        "status": 200,
        "headers": {
          "Content-Type": "application/json"
        },
        "body": {
          "id": 1,
          "items": [
            "milkshake",
            "burger"
          ],
          "date": "2025-03-26T12:00:00Z"
        }
      },
      "matchingRules": {
        "body": {
          "$.id": {
            "combine": "AND",
            "matchers": [
              {
                "match": "type"
              }
            ]
          },
          "$.items": {
            "combine": "AND",
            "matchers": [
              {
                "match": "type"
              }
            ]
          },
          "$.date": {
            "combine": "AND",
            "matchers": [
              {
                "format": "yyyy-MM-dd'T'HH:mm:ss",
                "match": "date"
              }
            ]
          }
        }
      }
    }
  ]
}

The contract file contains the details of the interactions between the consumer and provider. It specifies the request and response details, including the HTTP method, path, headers, and body. It also specifies the matching rules for the request and response bodies, which allows you to specify things such as date patterns. The matching rules specify how the request and response bodies should be matched, which allows you to test that the provider meets the requirements of the consumer. It also specifies the provider state, which can be used to set up the state of the provider before the interaction is verified, for example creating a mock order with ID 88 in your database or in-memory store. This will ensure that when the consumer sends a request for order ID 88, it will receive a valid response.

The consumer side

The consumer side of PACT is where you define the contract. The first step is to create a test class for your client that will call the provider system:

package com.example.pactdemo.client;

import au.com.dius.pact.consumer.MockServer;
import au.com.dius.pact.consumer.dsl.LambdaDslJsonBody;
import au.com.dius.pact.consumer.dsl.PactDslWithProvider;
import au.com.dius.pact.consumer.junit5.PactConsumerTest;
import au.com.dius.pact.consumer.junit5.PactTestFor;
import au.com.dius.pact.core.model.V4Pact;
import au.com.dius.pact.core.model.annotations.Pact;
import au.com.dius.pact.core.model.annotations.PactDirectory;

// full import list omitted

@PactConsumerTest
@PactDirectory("../pacts")
@PactTestFor(providerName = "PactDemoProvider")
public class OrderClientTest {

You then define the contract using the @Pact annotation. The PactDslWithProvider class is used to define and build the request and response details, including the HTTP method, path, headers, and body. The LambdaDslJsonBody class is used to define the matching rules for the request and response bodies:

    @Pact(provider = "PactDemoProvider", consumer = "PactDemoConsumer")
    public V4Pact orderPact(PactDslWithProvider builder) {
        LambdaDslJsonBody expectedResponseBody = newJsonBody((expectedOrder) -> {
              expectedOrder.stringType("id", "88");
              expectedOrder.object("user", (user) -> {
                    user.stringType("id", "881985");
                    user.stringType("firstName", "Sam");
                    user.stringType("lastName", "Jones");
                    user.stringType("email", "sam.jones@hungry.com");
              });
              expectedOrder.array("items", (item) -> {
                    item.object((itemObj) -> {
                          itemObj.stringType("id", "1");
                          itemObj.stringType("name", "Milkshake");
                          itemObj.stringType("description", "A delicious milkshake made with real ice cream and topped with whipped cream.");
                          itemObj.numberType("price", 5.99);
                    });
                    item.object((itemObj) -> {
                          itemObj.stringType("id", "2");
                          itemObj.stringType("name", "Burger");
                          itemObj.stringType("description", "A juicy beef burger with lettuce, tomato, and cheese.");
                          itemObj.numberType("price", 12.99);
                    });
              });
              expectedOrder.numberType("totalPrice", 18.98);
              expectedOrder.date("orderDate", "yyyy-MM-dd'T'HH:mm:ss", Date.from(LocalDateTime.parse("2015-10-21T10:30:00").toInstant(UTC)));
        });

        return builder
                    .given("order with ID 88 exists")
                    .uponReceiving("a request to get an order by id")
                    .path("/order/88")
                    .method("GET")
                    .headers("Accept", "application/json")
                    .willRespondWith()
                    .status(200)
                    .headers(Map.of("Content-Type", "application/json"))
                    .body(expectedResponseBody.build())
                    .toPact(V4Pact.class);
    }

Finally, you can use the @PactTestFor annotation to specify the provider system that you are testing against:

    @Test
    @PactTestFor(pactMethod = "orderPact")
    void testGetOrder(MockServer mockServer) throws Exception {
        OrderClient orderClient = new OrderClient(mockServer.getUrl());

        Order order = orderClient.getOrder("88");

        assertNotNull(order);
    }

The @PactTestFor annotation specifies the provider system that you are testing against, orderPact in this example. This needs to match the name of the method that defines the contract.

Pact starts a mock server that simulates the provider system. The MockServer object is used to get the URL of the mock server, which is then passed to the OrderClient to test against.

The provider side

The provider side of PACT is where you verify that the provider system meets the requirements of the consumer. The first step is to create a test class for your provider system that will verify the contract. In our example, the provider system is a Spring Boot application, so we can use the @SpringBootTest annotation to start the application and run the tests against it:

package com.example.pactdemo;

import au.com.dius.pact.provider.junit5.HttpTestTarget;
import au.com.dius.pact.provider.junit5.PactVerificationContext;
import au.com.dius.pact.provider.junit5.PactVerificationInvocationContextProvider;
import au.com.dius.pact.provider.junitsupport.Provider;
import au.com.dius.pact.provider.junitsupport.State;
import au.com.dius.pact.provider.junitsupport.loader.PactFolder;

// full import list omitted

@Provider("PactDemoProvider")
@PactFolder("../pacts")
@ExtendWith(SpringExtension.class)
@SpringBootTest(webEnvironment = SpringBootTest.WebEnvironment.RANDOM_PORT)
class PactDemoApplicationTests {

We then need to setup the test context and specify the target URL of the provider system. As we’re starting up the Spring Boot application, we can use the @LocalServerPort annotation to get the port that the application is running on and then set the target URL in the setUp method. However, you can also test against a real deployed service if you wish to be setting the target URL to the real service:

    @LocalServerPort
    int port;

    @BeforeEach
    void setUp(PactVerificationContext context) {
        context.setTarget(new HttpTestTarget("localhost", port, "/"));
    }

    @TestTemplate
    @ExtendWith(PactVerificationInvocationContextProvider.class)
    void verifyPact(PactVerificationContext context) {
        context.verifyInteraction();
    }

The @TestTemplate verifies the interactions defined in the contract file. You can also use this to add other things such as authentication or other headers that are required by the provider system.

We now need to define our tests:

    @State({
        "order with ID 88 exists",
        "order with ID 999 does not exist"
    })
    void testPactWhenOrderWithIdRequestReceived() {
        // This method is used to set up the state of the provider before the interaction is verified.
        // You can use this method to create any necessary data or perform any actions needed to set up the state.
        // For example, you could create a mock order with ID 88 in your database or in-memory store.
        // This will ensure that when the consumer sends a request for order ID 88, it will receive a valid response.
        // Similarly, you can set up the state for order ID 999 to return a 404 response.
    }

The @State annotation specifies the provider state that is required for the interaction to be verified. The rest of the test is empty, as the @TestTemplate will take care of verifying the interaction. But if you need to set up any data or perform any actions needed to set up the state, you can do that here.

Where to store the contract files

In the examples above, we have used the @PactDirectory annotation to specify the location of the contract files. These can then just be committed to git. However, unless you’re using a monorepo, you will need to store the contract files in a shared location that is accessible to both the consumer and provider systems. This could be a dedicated contract file repository, where the consumers will need to manually copy the contract files and the providers will need to test against a pre-deployed system.

Alternatively, you can use the PACT broker to store the contract files. The PACT broker is a service that stores the contracts. A Docker image is available for the PACT broker, as well as Helm charts for deployment to Kubernetes.

Conclusion

So to summarise, PACT is a fantastic contract testing tool that takes the pain out of hand crafting contracts. If integration tests are overkill or too complex to set up, as was the case for our team working on a proof of concept, then contract testing using PACT is a great alternative.
