Smarter Spring Development in Eclipse with GitHub Copilot

How the Spring Tools MCP Server and GitHub Copilot together make Spring Development more efficient.

Introduction

If you write Spring Boot applications in Eclipse, you already know that Spring Tools for Eclipse brings best-in-class tooling right into your IDE, including quick navigation and visualization of core Spring elements in your projects, live information from running Spring Boot applications, Spring specific auto completion, validations and quick fixes, request mapping overviews, and much more. In addition to that, if you have the GitHub Copilot plugin for Eclipse installed, you have a powerful AI coding assistant at your fingertips.

But here is the question that most developers haven’t asked yet: what does Copilot actually know about your Spring project, and how efficiently can it get that context? Copilot can search across the repository and infer a lot from source files, but that is still a general discovery process. It does not automatically have direct, structured access to things like your beans graph, the resolved classpath, the exact Spring Boot version, or the diagnostics your IDE is already computing. Spring Tools MCP Server helps close that gap by giving Copilot a fast, direct way to retrieve Spring-specific project information through a small number of targeted tool calls, which can improve response quality and may also reduce unnecessary exploration and token usage.

This post explains why this matters and walks you through two hands-on demos so you can see it in action.

Why Connect Copilot to the Spring Tools MCP Server?

Before diving into the setup, it’s worth understanding the core problem this solves and what you gain.

The Spring Tools MCP server exposes the Spring specific facts that it knows about your projects as callable tools. When Copilot’s agent mode needs to answer a Spring question, it can call one of those tools to fetch the real answer from your running IDE instead of guessing or searching for the answer by reading all sources from your project, using grep in the command line, or similar techniques. This is the difference between a colleague who has never seen your project and one who has had it open for hours.

Benefits at a Glance

Getting Started

Prerequisites

• Spring Tools for Eclipse2.0 or later installed
• GitHub Copilot plugin for Eclipse installed and signed in
• A Spring Boot project open in your workspace

Step 1: Enable the Embedded MCP Server

The MCP server is experimental (at the moment) and must be switched on explicitly.

1. In Eclipse, go to Window → Preferences → Spring → AI
2. Check Enable embedded MCP server
3. Click Apply and Close, then restart Eclipse

Step 2: Verify the MCP Is Registered with Copilot

Spring Tools automatically writes the MCP server entry into Copilot’s configuration for Eclipse. To confirm:

1. Click the GitHub Copilot icon in the Eclipse toolbar.
2. Go to Edit Preferences → MCP Servers.
3. You should see an entry similar to:

{
  "servers": {
    "spring-tools-local-dev-server": {
      "url": "http://localhost:50627/mcp",
      "type": "http"
    }
  }
}

Step 3: Switch Copilot Chat to Agent Mode

MCP tools are only invoked in Agent mode, not in the standard chat mode.

1. Open the GitHub Copilot Chat panel in Eclipse.
2. In the model/mode selector at the top of the chat panel, switch from Chat to Agent.
3. You are now ready to run the demos below.

Demos

The following two prompts demonstrate the collaboration between Copilot and the Spring Tools MCP server in action. In each case, Copilot will invoke one or more Spring Tools MCP tools automatically to ground its response in your live project data.

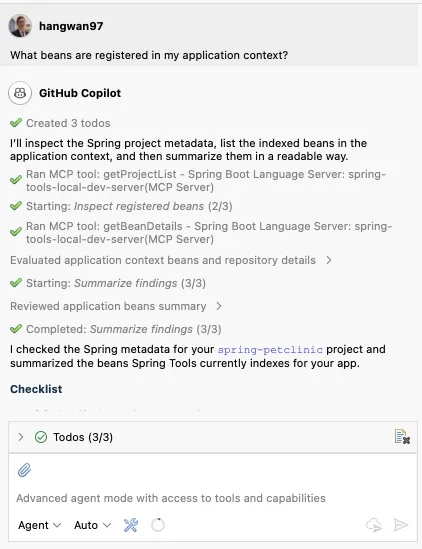

Demo 1: Exploring Your Application Context

One of the first things a new developer (or an AI agent) needs to understand about a Spring project is its bean graph: what’s registered, what type it is, and how components are wired together. Without the Spring Tools MCP server, Copilot can only guess that from what’s visible in the current file and by searching and reading through source files of your project. With the MCP server, it queries the Spring Tools for the authoritative answer.

What happens behind the scenes

When you send this prompt, Copilot’s agent recognizes it needs project-specific data. It calls the MCP tool to retrieve the full bean list from the Spring Tools, which has already indexed your project. The response is then structured and returned to you directly in chat.

You will receive a breakdown of all beans registered in your context, including:

• Bean name and fully qualified class name
• Stereotype (@Service, @Repository, @Controller, @Component, etc.)
• Dependencies and injection points
• Which module or configuration class registers each bean

Example response (truncated)

Your application context has 24 registered beans:




  UserService           @Service      com.example.service.UserService

  UserRepository        @Repository   com.example.repository.UserRepository

  ProductController     @RestController  com.example.web.ProductController

  SecurityConfig        @Configuration  com.example.config.SecurityConfig

  DataSource            @Bean         com.example.config.DataSourceConfig

  ...




UserService depends on: UserRepository, PasswordEncoder

ProductController depends on: ProductService, UserService

This is data that the Spring Tools has already computed. The MCP server simply makes it available to the agent on demand — no file pasting, no hallucination, no token waste.

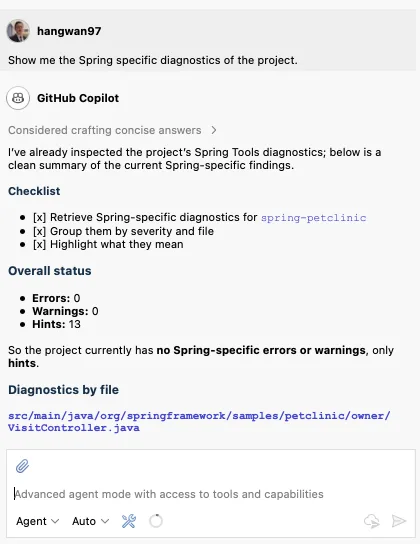

Demo 2: Fetching Live Project Diagnostics

The second demo shows something even more powerful: giving Copilot awareness of your project’s current errors and warnings before it tries to fix them. Without this, an AI agent might generate a fix that addresses a symptom while ignoring the root cause — or worse, introduces a new problem it can’t see.

What happens behind the scenes

By explicitly naming the tool in your prompt, you instruct the agent to call getProjectDiagnostics on the Spring Boot Language Server. This is the same set of errors, warnings, and info markers you see in Eclipse’s Problems view — but now surfaced directly in chat, where Copilot can reason about them and propose targeted fixes.

The diagnostics response includes:

• File path and line number of each issue
• Severity level (Error / Warning / Info)
• A human-readable message (identical to what the IDE shows)
• The specific Spring rule or validation that triggered it

Example response (truncated)

Project diagnostics via getProjectDiagnostics (Spring Boot Language Server):

ERROR   UserController.java:42
  No bean of type 'EmailService' found in application context.
  Consider adding @Service or @Component to EmailService.

WARNING SecurityConfig.java:17
  @Configuration class missing @EnableWebSecurity.
  Spring Security auto-configuration may not apply correctly.

INFO    application.properties:5
  Property 'spring.datasource.url' is deprecated since Boot 3.2.
  Suggested replacement: spring.datasource.jdbc-url

3 issues found (1 error, 1 warning, 1 info).

Once Copilot has this information, you can follow up naturally: “Fix the missing EmailService bean error.” The agent already knows the exact location and the root cause, so it can generate a precise, correct fix, not a guess.

Discovering All Available MCP Tools

The Spring Tools MCP server exposes more tools than just the two shown above. You can discover everything it offers through the chat panel:

Chat Panel → Configure Tools → Model Context Protocol (MCP)

Conclusion

The Spring Tools MCP server bridges the gap between what GitHub Copilot knows in general and what it needs to know about your project specifically. By connecting Copilot’s agent mode to the live data your IDE already computes, you get responses that are grounded in reality, lighter on tokens, and accurate enough to trust.

Feedback

GitHub Copilot for Eclipse is open source, your voice shapes its future. Visit the repository at github.com/microsoft/copilot-for-eclipse to report issues, suggest features, or submit a pull request. Every contribution, big or small, helps make the Eclipse developer experience better for everyone.

The Spring Tools MCP server is at an early experimental stage, so we would love to hear your feedback and suggestions. You can find the Spring Tools (including the embedded MCP server) project at https://github.com/spring-projects/spring-tools/. Please visit the repository to report issues, suggest new features, or submit a pull request.
